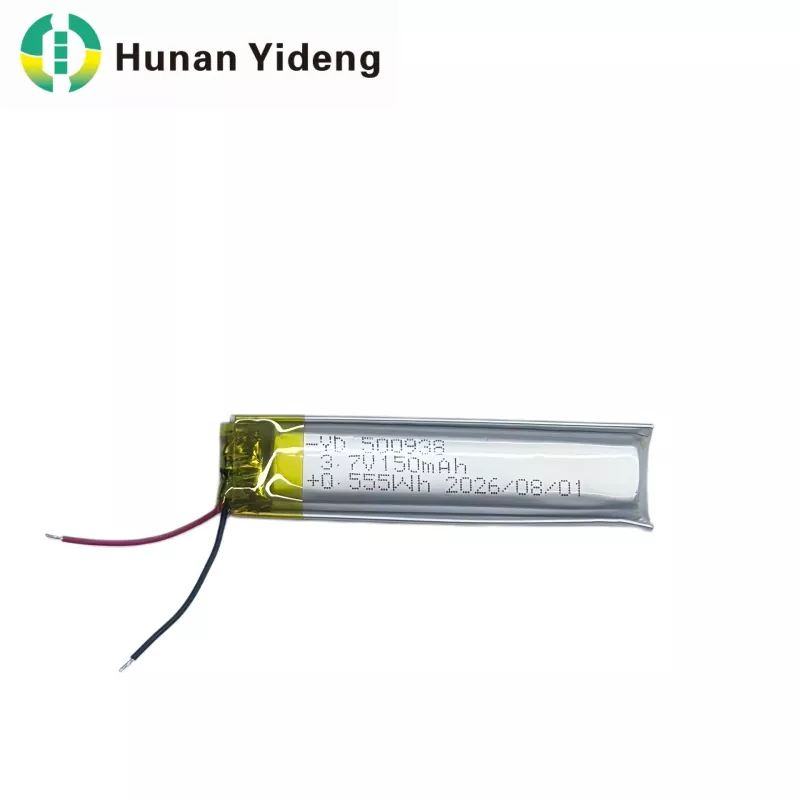

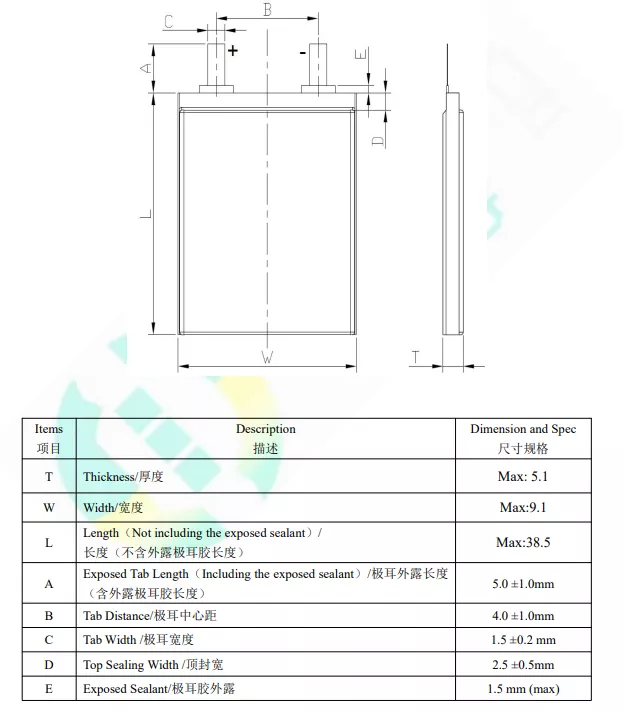

The Yideng 500938 3.7V 150mAh Square Battery pack lithium polymer battery is designed for compact electronic devices that require lightweight, stable, and reliable power performance. With a rated voltage of 3.7V, a capacity of 150mAh, and a compact 5.0 × 9.0 × 38.0mm square pouch structure, this battery is an ideal solution for GPS trackers, pet locators, portable navigation equipment, and other smart devices.
With a lightweight design of only 4.5g, the battery helps reduce overall device weight while maintaining efficient energy output. Its optimized lithium polymer structure provides stable discharge performance, low self-discharge characteristics, and reliable standby capability for portable applications.
Yideng provides flexible OEM/ODM battery customization services based on customer requirements, including battery dimensions, wire length, connector types, PCM protection design, and labeling solutions. From prototype samples to mass production, Yideng supports global customers with professional lithium battery manufacturing solutions.
| Item | Specification |
| Model | 500938 |
| Material | Li-ion Polymer Battery |
| Normal Capacity (0.2C) | 150mAh |
| Minimum Capacity (0.2C) | 150mAh |
| Energy | 0.555Wh |
| Normal Voltage | 3.7V |
| Delivery Voltage | 3.85V ~ 4.05V |
| Standard Charge Method | Charge at maximum current. When the battery or pack terminal voltage reaches the charging limit voltage, charge at constant voltage until the charging current is less than or equal to 0.02 C, then stop charging. |
| Discharge Program | The battery or the battery pack carries on the constant current discharge with the maximum discharge current to the discharge termination voltage. |
| Max Charging Current | 1C CC/CV → 0.02C cutoff |
| Max Discharging Current | 1C CC/CV → 3.0V cutoff |
| Over-Discharging Current | 2.3V |
| Operation Temperature Range |
Charging: 0°C ~ 50°C Discharging: -20°C ~ 60°C |
| Allowable Maximum Surface Temperature |
Charging: Tmax ≤ 50°C Discharging: Tmax ≤ 60°C |
| Storage T/H Range (time) |
-20°C ~ 60°C (Less than 1 month) -20°C ~ 45°C (Less than 3 months) -20°C ~ 25°C (Less than 1 year) |
| Cycle Life |
≥ 300 times (Thickness expansion rate ≤ 10%) ≥ 500 times (Thickness expansion rate ≤ 12%) |
500938 3.7V 150mAh Square Battery pack lithium polymer battery
1. All pouch cells adopt multi-layer composite safety separators inside, matched with built-in mini protection PCB. They block overcharge, over-discharge and short-circuit current effectively, no swelling or ignition even under improper daily operation by end users.
2. We use leak-proof sealed lamination structure for every polymer battery. High-stable gel electrolyte won't flow out when squeezed or dropped, avoiding corrosion and fire risks caused by liquid leakage in small electronic devices.
3. Each cell passes strict external short circuit, extrusion and drop abuse tests before shipment. Internal thermal shutdown layer cuts off chemical reaction automatically once temperature rises to dangerous threshold.
4. Insulated edge wrapping and integrated anti-puncture film are added on cell exterior. The whole cell features low heat generation during continuous discharge, suitable for long-time sealed standby of wearable and medical gadgets.
Every single item meets RoHS compliance standards. Our lithium polymer batteries have obtained multiple authoritative accreditations, covering UL1642, UL2054, CE, CB, KC, PSE, BIS, IEC62133, REACH, UN38.3 and other globally recognized safety certificates.
| Model | Voltage (V) | Capacity (mAh) | Certification |
| 500909 | 3.7 | 25 | UL1642 |
| 400911 | 3.7 | 25 | UL1642 |
| 401012 | 3.7 | 30 | UL1642 |
| 451012 | 3.7 | 35 | UL1642 |
| 501012 | 3.7 | 40 | UL1642 |
| 551012 | 3.7 | 45 | UL1642 |
| 551113 | 3.7 | 50 | UL1642 |
| 581013 | 3.7 | 50 | UL1642 |
| 501114 | 3.7 | 53 | UL1642 |
| 551212 | 3.7 | 55 | UL1642 |
| 601015 | 3.7 | 60 | UL1642 |
| 350925 | 3.7 | 60 | UL1642 |
| 551215 | 3.7 | 68 | UL1642 |
| 430828 | 3.7 | 85 | UL1642 |
| 501220 | 3.7 | 95 | UL1642 |
| 501035 | 3.7 | 150 | UL1642 |
| 551012 | 3.7 | 45 | UL1642 |
| YD1140 | 3.7 | 34 | UL1642 |
| 1154 | 3.85 | 57 | UL1642 |
| 1240 | 3.7 | 45 | UL1642 |
| 1240 | 3.7 | 42 | UL1642 |
| 1040 | 3.7 | 26 | UL1642 |
| 1042 | 3.7 | 35 | UL1642 |
| 1144 | 3.7 | 40 | UL1642 |
| 1147 | 3.7 | 40 | UL1642 |
| 1054 | 3.7 | 40 | UL1642 |
| 1240 | 3.7 | 42 | UL1642 |
| 1058 | 3.7 | 45 | UL1642 |
| 1152 | 3.7 | 48 | UL1642 |
| 1154 | 3.7 | 50 | UL1642 |
| 1254 | 3.7 | 60 | UL1642 |
| 501140 | 3.7 | 180 | UL1642 |
| 502224 | 3.7 | 250 | UL1642 |
| 551145 | 3.7 | 250 | UL1642 |
| 552224 | 3.7 | 280 | UL1642 |
| 601434 | 3.7 | 280 | UL1642 |
| 751434 | 3.7 | 350 | UL1642 |
| 802025 | 3.7 | 350 | UL1642 |
| 681244 | 3.7 | 350 | UL1642 |
Because the polymer battery is packed in soft package, to ensure its better performance, it's very important to carefully handle the polymer battery.
· Avoid insolation or dropping into fire.
· Avoid shorting the battery.
· Avoid excessive physical shock or vibration.
· Don't disassemble or deform the battery.
· Don't immerse in water.
· Don't use the battery mixed with other model or manufacturer batteries.
· Battery usage by children should be supervised.
Yideng is a high-tech lithium battery manufacturer specializing in polymer lithium batteries, consumer batteries, and customized energy storage solutions. With strong R&D capability and intelligent manufacturing systems, Yideng provides reliable battery solutions for global electronic device manufacturers.
- Two intelligent manufacturing bases located in Hunan and Guangdong
- Daily production capacity up to 1 million battery cells
- 85% automated production lines
- MES digital production management system for quality traceability
- 150+ R&D professionals
- 7 doctoral researchers
- 68 battery-related patents
Supporting customized battery development for GPS devices, smart wearables, consumer electronics, and other compact applications.
Yideng supports:
- Battery size customization
- Capacity adjustment
- Wire and connector customization
- PCM protection solutions
- Prototype sampling
- Mass production support
Yideng products comply with international standards including:
- ISO9001 Quality Management System
- ISO14001 Environmental Management System
- CE
- RoHS
- UN38.3
- IEC62133
- UL1642
Providing safe, stable, and export-ready lithium battery solutions for customers worldwide.
