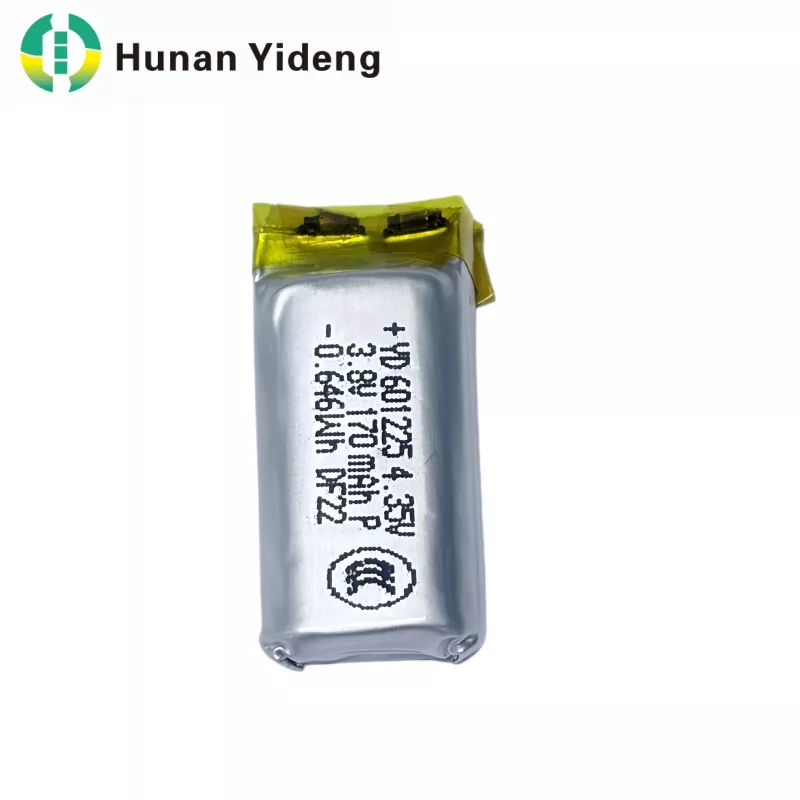

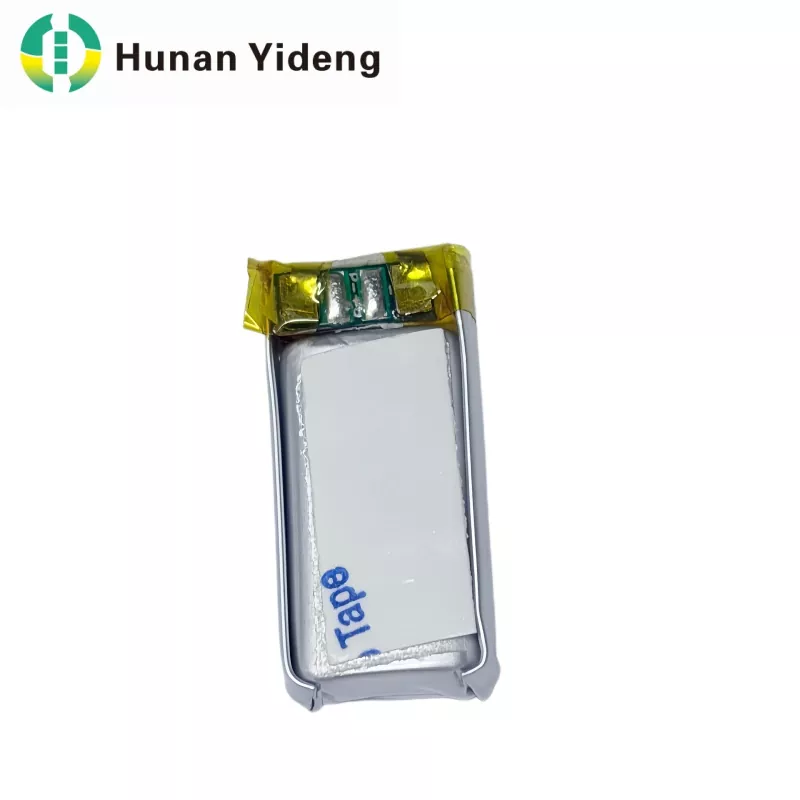

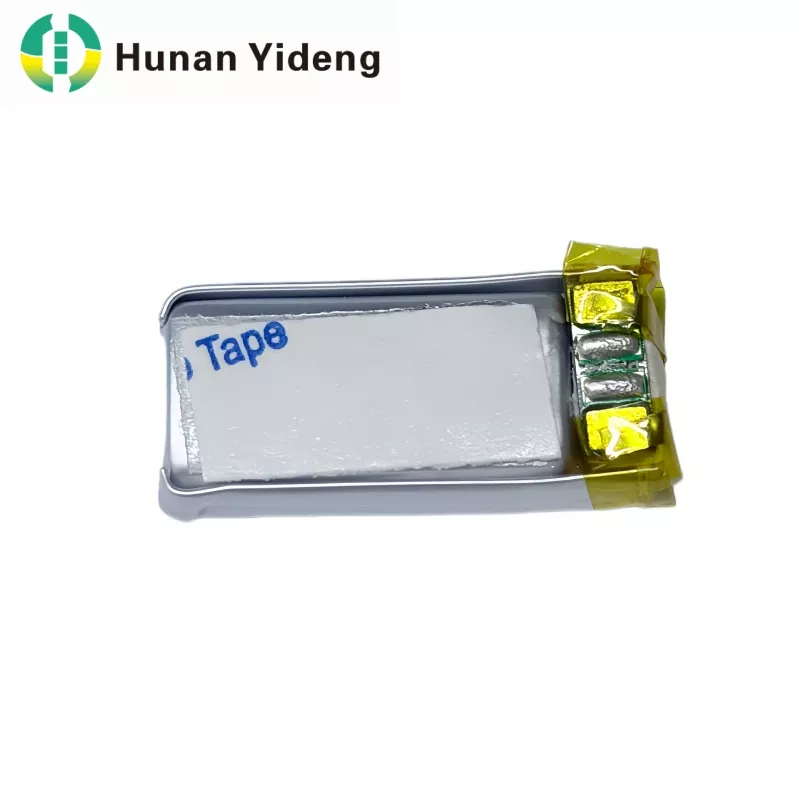

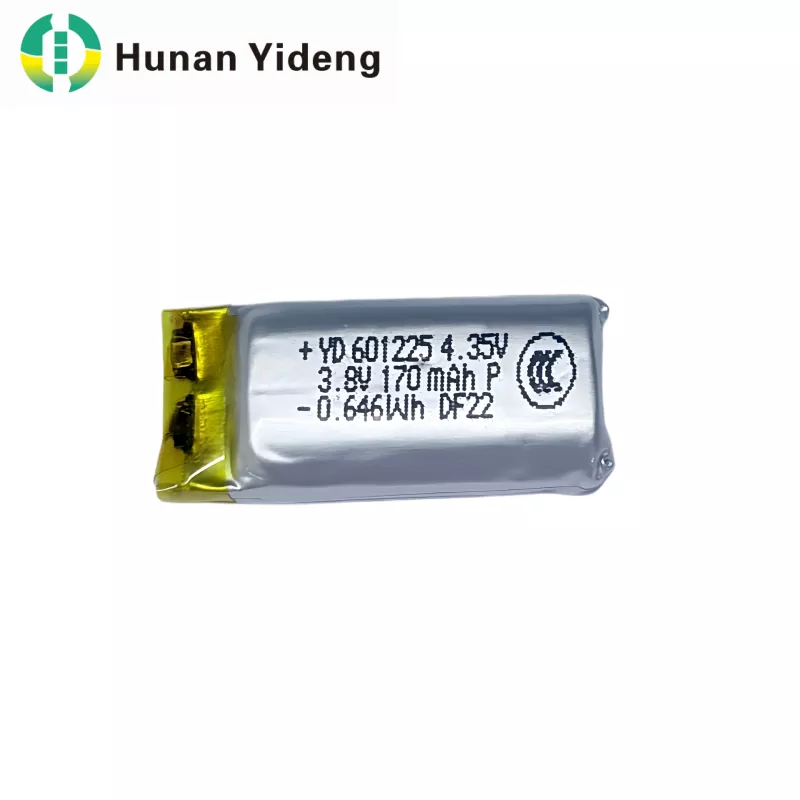

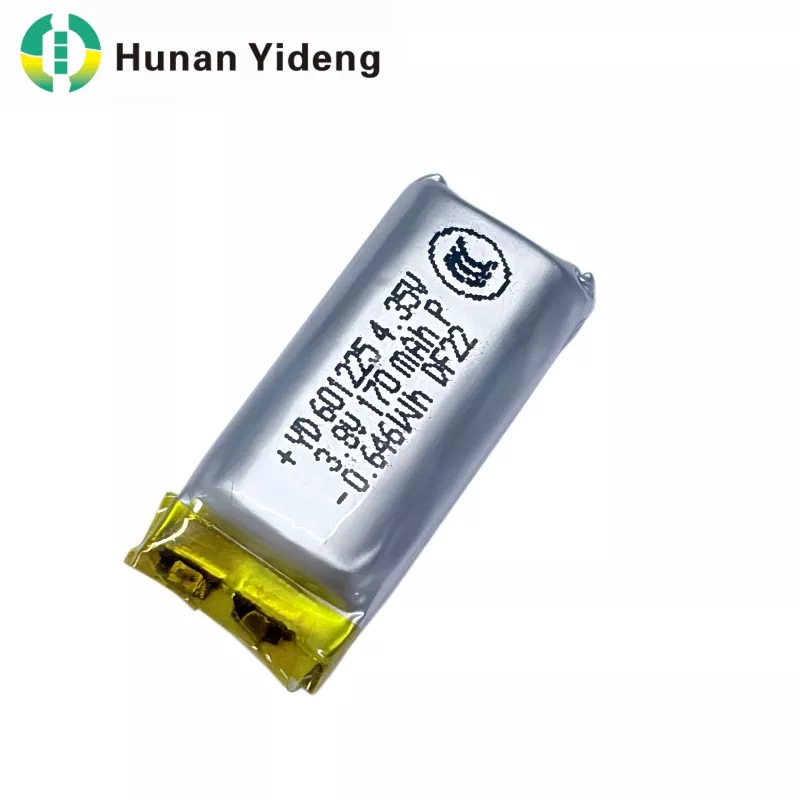

Designed for high-frequency operations, our premium 601225 Li-po micro battery for medical gadgets and consumer electronics integrates cutting-edge electrochemical formulations that support rapid-charging capabilities. To guarantee bulletproof field reliability, our ISO-certified facilities run strict quality control protocols, conducting exhaustive testing on every single batch before dispatch. Weighing just 6.5g with an ultra-compact maximum physical profile of 6 × 12 × 25.3mm, this high-performance cell utilizes low internal resistance engineering to minimize heat generation during rapid power intake, safeguarding delicate internal electronic components while keeping surface operating temperatures perfectly stabilized.
Absolute safety and flexible customization define the foundation of this 601225 rechargeable lithium polymer battery. Certified under UL1642, CB, UN38.3, and ROHS, the flat prismatic cell features a sophisticated Dual IC protection network that actively suppresses over-current, over-discharge, and short-circuit hazards. Constructed from top-tier Ternary materials and high-purity LiCoO2, it boasts a highly competitive cycle life, maintaining over 80% capacity retention past 500 complete cycles. Operating from our state-of-the-art Hunan and Guangdong factories, we welcome global hardware innovators with customized OEM thickness adjustments, client-pointed connectors, and scalable logistics.
Nominal Voltage: 3.7V
Delivery Voltage: 3.7V ~ 4.2V
Nominal Capacity: 170mAh

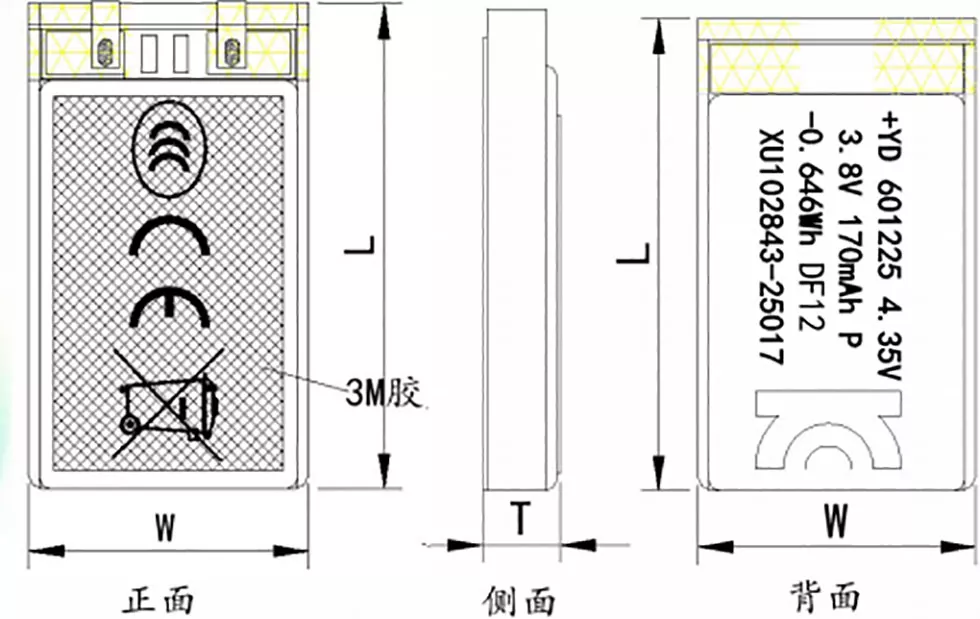

Cell Measurement: 6 × 12 × 25.3mm
| Item | Specification |
| Model | 601225 |
| Material | Li-ion Polymer Battery |
| Normal Capacity (0.2C) | 170mAh |
| Minimum Capacity (0.2C) | 170mAh |
| Energy | 0.646Wh |
| Normal Voltage | 3.7V |
| Delivery Voltage | 3.85V ~ 4.05V |
| Standard Charge Method | Charge at maximum current. When the battery or pack terminal voltage reaches the charging limit voltage, charge at constant voltage until the charging current is less than or equal to 0.02 C, then stop charging. |
| Discharge Program | The battery or the battery pack carries on the constant current discharge with the maximum discharge current to the discharge termination voltage. |
| Max Charging Current | 1C CC/CV → 0.02C cutoff |
| Max Discharging Current | 1C CC/CV → 3.0V cutoff |
| Over-Discharging Current | 3.0V |
| Operation Temperature Range |
Charging: 0°C ~ 50°C Discharging: -20°C ~ 60°C |
| Allowable Maximum Surface Temperature |
Charging: Tmax ≤ 50°C Discharging: Tmax ≤ 60°C |
| Storage T/H Range (time) |
-20°C ~ 60°C (Less than 1 month) -20°C ~ 45°C (Less than 3 months) -20°C ~ 25°C (Less than 1 year) |
| Cycle Life |
≥ 300 times (Thickness expansion rate ≤ 10%) ≥ 500 times (Thickness expansion rate ≤ 12%) |
| Weight | 6.5g |
601225 Li-po micro battery for medical gadgets and consumer electronics
1. High operation voltage
2. High energy density
3. Environmentally compatible
4. High level of safety
5. Non-memory

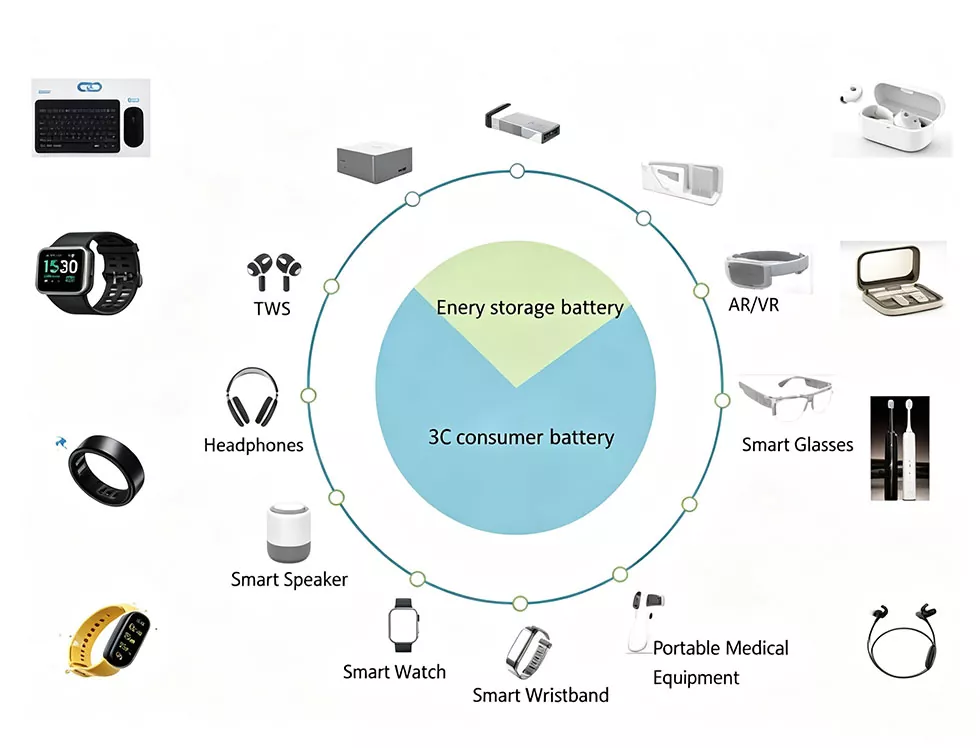

Lithium ion polymer battery is widely used in digital products:
601225 Li-po micro battery for Medical Gadgets and Consumer Electronics, Headphone Products, 3C Digital Products, Pet GPS locators, Smart watches, Electric dolls, Facial beauty devices etc.
Each shipment is processed using standard export-grade heavy cartons, with tailored, custom-made package designs fully supported upon request. Clients can choose from three specialized logistics channels based on budget and urgency: rapid express dispatch via UPS, DHL, FedEx, or TNT (guaranteeing arrival within 3-15 days), scheduled air cargo routing (averaging approximately one week), or high-volume sea shipment solutions (taking about one month to destination). Following payment verification and final layout packing confirmation, your order will be successfully discharged from our facility within a precise window of 4 – 25 working days.

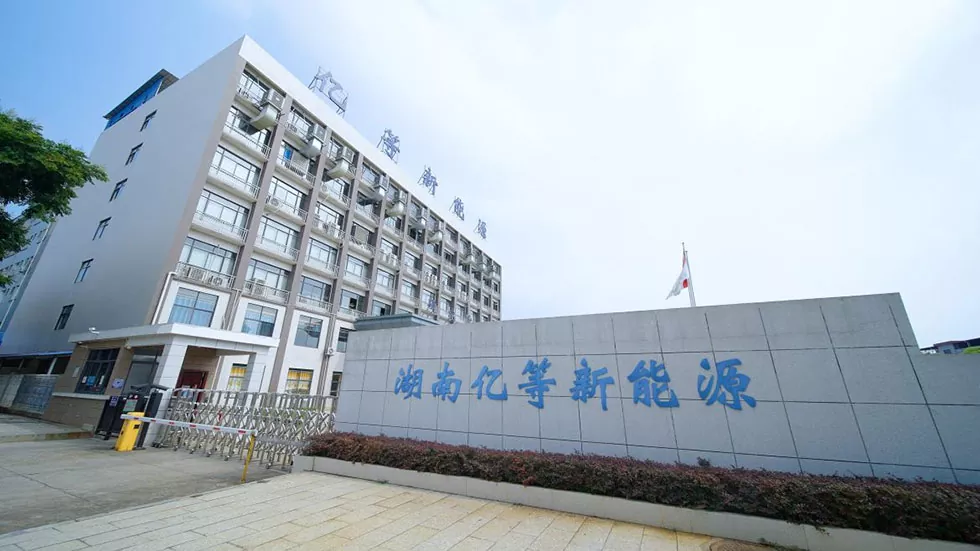

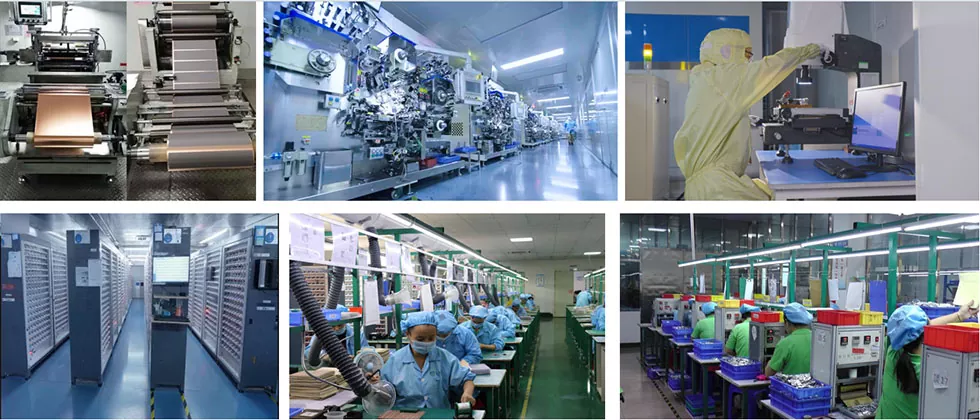

Hunan Yideng New Energy Co., Ltd., Our 85% fully automated production workshops adopt top-tier imported cell manufacturing machines to boost output consistency. Comprehensive international certifications enable seamless export to Asian and North American key markets.
A1: Yes, we own full export qualifications and mainstream international battery certificates.
A2: We make polymer pouch cells, shaped fast-charging & e-bike lithium batteries.
A3: Logo printing is available for OEM orders with reasonable MOQ.
A4: Custom samples take about 3 – 7 days; standard cells can be sent within 2 days.
A5: Larger order quantities bring more favorable unit prices.
A6: We offer flexible worldwide logistics to match your budget and urgency. You can choose between rapid express dispatch via UPS, DHL, FedEx, or TNT (arriving in 3-15 days), scheduled air cargo routing (approx. 1 week), or cost-effective bulk sea shipment (approx. 1 month). Standard order handling and delivery take 4 – 25 working days following payment verification and packaging sign-off.
A7: Warmly welcomed! As a direct-from-factory manufacturer, we provide comprehensive OEM/ODM customization services. We can expert-tailor the battery thickness, adjust lead wire configurations, and install client-pointed connectors to seamlessly fit your device's architecture. We fully support hardware innovators with an ultra-flexible MOQ starting from just 1 piece for initial prototype evaluation.
A8: Yes, absolute efficiency is a key feature. This 601225 micro Lipo battery is designed with an advanced fast-charge electrochemical profile. It supports a maximum charging current of 1C (CC/CV), enabling rapid energy intake while utilizing an ultra-low internal resistance (IR) design to suppress localized heat generation and ensure safer operational temperatures during fast charging.
