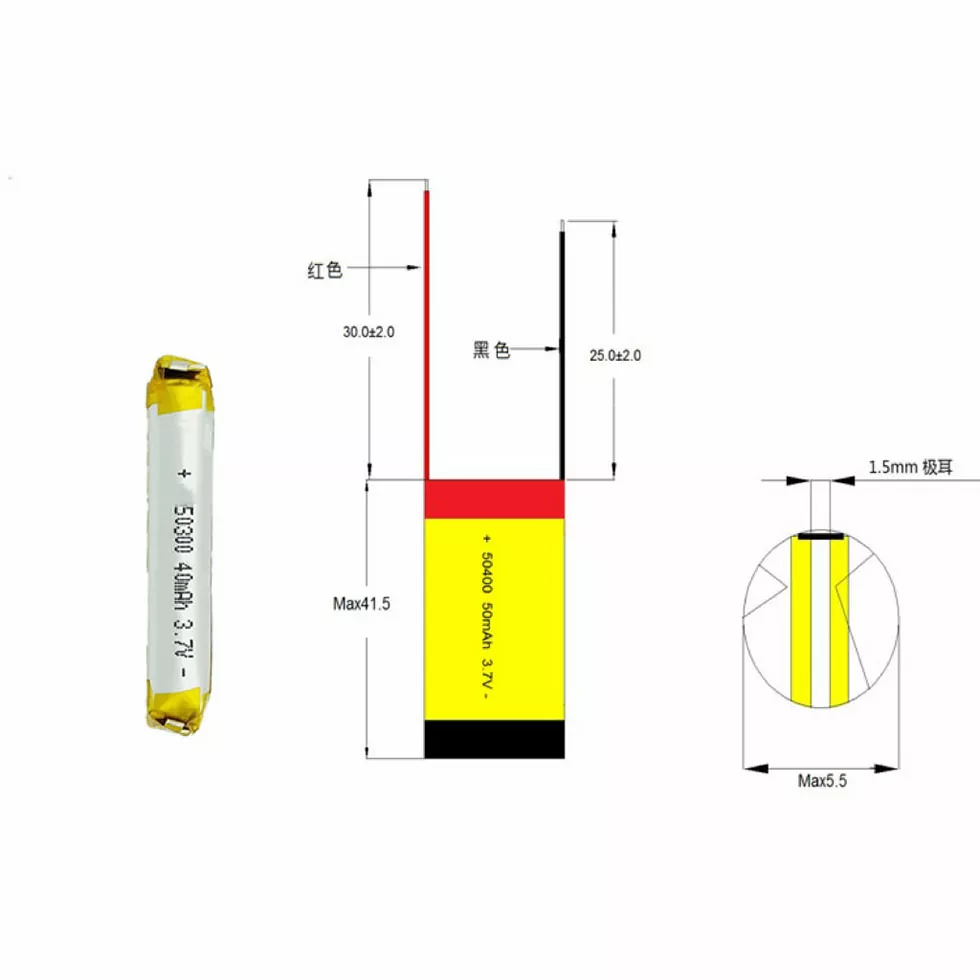

The 50300 45mAh 3.7V Rechargeable Lipo Lithium Battery Cylindrical Cell is developed for electronic products where installation space, weight and stable power supply are critical factors.
Compared with conventional battery formats, miniature LiPo cells provide greater flexibility in product design. The compact structure allows manufacturers to integrate power sources into smaller devices while maintaining reliable operating performance.
Yideng manufactures miniature lithium battery solutions with customized supporting services, including PCM protection board assembly, connector matching and cable processing. This enables customers to receive battery components ready for direct integration into their final products.
| Item | Specification |
| Model | 50300 |
| Material | Li-ion Polymer Battery |
| Normal Capacity (0.2C) | 45mAh |
| Minimum Capacity (0.2C) | 45mAh |
| Energy | 0.167Wh |
| Normal Voltage | 3.7V |
| Delivery Voltage | 3.7V ~ 4.2V |
| Standard Charge Method | Charge at maximum current. When the battery or pack terminal voltage reaches the charging limit voltage, charge at constant voltage until the charging current is less than or equal to 0.02 C, then stop charging. |
| Discharge Program | The battery or the battery pack carries on the constant current discharge with the maximum discharge current to the discharge termination voltage. |
| Max Charging Current | 1C CC/CV → 0.02C cutoff |
| Max Discharging Current | 1C CC/CV → 3.0V cutoff |
| Over-Discharging Current | 3.0V |
| Operation Temperature Range |
Charging: 0°C ~ 50°C Discharging: -20°C ~ 60°C |
| Allowable Maximum Surface Temperature |
Charging: Tmax ≤ 50°C Discharging: Tmax ≤ 60°C |
| Storage T/H Range (time) |
-20°C ~ 60°C (Less than 1 month) -20°C ~ 45°C (Less than 3 months) -20°C ~ 25°C (Less than 1 year) |
| Cycle Life |
≥ 300 times (Thickness expansion rate ≤ 10%) ≥ 500 times (Thickness expansion rate ≤ 12%) |
For miniature electronic devices, battery size and integration flexibility directly affect product design possibilities.
The 50300 45mAh 3.7V Rechargeable Lipo Lithium Battery Cylindrical Cell adopts a compact structure that helps engineers optimize internal space utilization while maintaining stable voltage output. Its low self-discharge characteristics support long standby operation for smart sensors and portable devices.
The battery can be configured with different protection circuits, wire lengths and connector solutions, allowing manufacturers to adapt the cell according to specific product designs.
Yideng provides more than standard miniature lithium cells. According to customer requirements, additional processing services are available:
- PCM protection board installation
- 2-pin / 3-pin / 4-pin wire assembly
- Connector customization
- Cable length adjustment
- Battery pack integration
This service helps electronic product manufacturers reduce assembly complexity and improve production efficiency.
The cylindrical and square lithium polymer batteries are widely adopted for a broad range of portable electronics. They power Bluetooth earphones, wireless headsets, smart watches and Bluetooth speakers. Besides wearable audio devices, these cells fit GPS navigators, walkie talkies, set-top boxes and portable DVD players. They also serve beauty instruments, miner lamps, electric toys and more compact consumer gadgets. Thanks to flexible size options, stable output and customizable designs including protection boards and connecting wires, our lipo batteries can match different equipment structure requirements. Small-sized, reliable polymer cells are ideal power solutions for all kinds of miniature portable electronic products.
Yideng factory mainly produces lithium polymer batteries based on pure ternary material and lithium cobalt oxide.
Common applications: UPS, electric bicycles, electric passenger vehicles requiring high safety standards.
Advantages: Ultra-long service life, Excellent thermal stability, Superior safety performance, Cost-effective
Disadvantages: Low energy density
Common applications: Laptops, mobile phones and other consumer electronic devices.
Advantages: High energy density, High compaction density, Good low-temperature performance
Disadvantages: Average safety performance, High material cost
Common applications: Special electric vehicles and passenger EVs.
Advantages: Highest specific capacity, Favourable cycle life, second only to lithium iron phosphate
Disadvantages: Ordinary safety performance, Poor thermal stability
Common applications: Laptops and digital products.
Advantages: Lowest production cost, High discharge voltage platform
Disadvantages: Lowest energy density, Poor cycle stability under high temperature, High self-discharge rate
When the protection IC detects that the cell voltage reaches the over-discharge protection threshold voltage, the protection IC actively reduces the discharge control pin to a low-frequency voltage, turning off the voltage output. The MOS tube monitoring pin recognizes the low level and shuts off the current output. This achieves the over-discharge protection function.
A1: MOQ depends on whether customers require standard cells or customized processing. Yideng supports sample orders for testing and small-batch production before large-volume cooperation.
A2: Yes. Yideng provides customized wire length, connector type, terminal design and PCM protection board assembly according to customer product requirements.
A3: Yes. The compact size and flexible customization options make this LiPo cell suitable for smart wearables, Bluetooth sensors, IoT devices and other space-limited electronics.
A4: Yes. Customers can request samples for testing and verification before confirming bulk production orders.
A5: Yideng can provide relevant compliance documents including UN38.3, RoHS and other certifications according to application and market requirements.
A6: Yideng focuses on lithium battery R&D and manufacturing, providing miniature lithium polymer cells as well as customized battery processing and integration services.
