Modern miniature electronics require battery solutions that can deliver reliable performance without occupying valuable internal space. The Yideng 1054 pouch coin LiPo battery is developed specifically for compact devices where thickness, weight, and flexible installation are critical design factors.
With a 3.85V operating voltage and 45mAh capacity, this mini rechargeable button cell adopts a soft pouch structure measuring only 10.0 × 5.4mm, allowing engineers to integrate power sources into ultra-small product designs.
Compared with traditional rigid coin-type batteries, the pouch LiPo structure provides greater flexibility in customization and assembly. Manufacturers can optimize battery placement, connection methods, and protection solutions according to different product architectures.
The 1054 Pouch Coin Lipo Battery Mini Rechargeable Button Cell is especially suitable for:
- Wireless earphones requiring compact internal layouts
- Smart sensors needing lightweight power sources
- Smart pens and miniature electronic devices
- IoT products with strict space limitations
Yideng supports complete customization services, including PCM configuration, lead wire selection, connector adaptation, and battery packaging solutions, helping customers move efficiently from prototype development to volume production.
| Item | Specification |
| Model | 1054 |
| Material | Li-ion Polymer Battery |
| Normal Capacity (0.2C) | 45mAh |
| Minimum Capacity (0.2C) | 45mAh |
| Energy | 0.17325Wh |
| Normal Voltage | 3.85V |
| Delivery Voltage | 3.85V ~ 4.10V |
| Standard Charge Method | Charge at maximum current. When the battery or pack terminal voltage reaches the charging limit voltage, charge at constant voltage until the charging current is less than or equal to 0.02 C, then stop charging. |
| Discharge Program | The battery or the battery pack carries on the constant current discharge with the maximum discharge current to the discharge termination voltage. |
| Max Charging Current | 1C CC/CV → 0.02C cutoff |
| Max Discharging Current | 1C CC/CV → 3.0V cutoff |
| Over-Discharging Current | 3.0V |
| Operation Temperature Range |
Charging: 0°C ~ 50°C Discharging: -20°C ~ 60°C |
| Allowable Maximum Surface Temperature |
Charging: Tmax ≤ 50°C Discharging: Tmax ≤ 60°C |
| Storage T/H Range (time) |
-20°C ~ 60°C (Less than 1 month) -20°C ~ 45°C (Less than 3 months) -20°C ~ 25°C (Less than 1 year) |
| Cycle Life |
≥ 300 times (Thickness expansion rate ≤ 10%) ≥ 500 times (Thickness expansion rate ≤ 12%) |
Yideng applies a complete battery testing system to ensure every 1054 Pouch Coin Lipo Battery Mini Rechargeable Button Cell meets performance and safety requirements.
Before production, key battery materials are inspected to ensure consistency and reliability.
Testing includes:
- Material quality verification
- Electrode performance inspection
- Separator quality evaluation
Ensuring stable battery performance from the beginning.
During production, Yideng uses an MES digital management system to track manufacturing processes and maintain production consistency.
Key monitoring points include:
- Cell assembly process
- Sealing quality
- Battery formation process
- Production traceability
Each battery batch undergoes electrical testing including:
- Capacity testing
- Voltage measurement
- Internal resistance testing
- Charge and discharge performance evaluation
Ensuring stable output performance for compact electronic devices.
Before shipment, batteries are evaluated for:
- Overcharge protection
- Over-discharge protection
- Short circuit safety
- Thermal performance
Supporting reliable operation in consumer electronic applications.
The 1054 pouch coin LiPo battery supports:
- CE
- UN38.3
- RoHS
Each shipment undergoes final quality confirmation before delivery.
Nominal Voltage: 3.85V
Delivery Voltage: 3.85V ~ 4.10V
Nominal Capacity: 45mAh

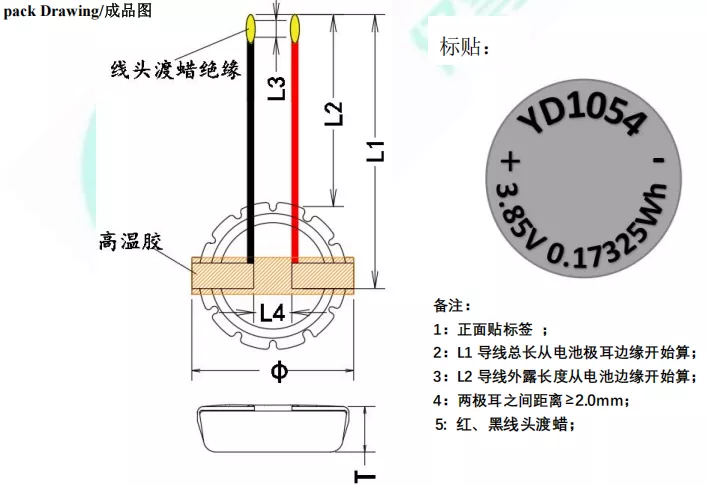

Measurement: 5.5 × 10.1mm
· Battery charge should be used appropriate charger.
· Forbidden to use modified or damaged charger.
· Forbidden to charge over 24 hours for battery.
· Charge current: can't surpass the biggest charge current specified by battery specification.
· Charge voltage: can't surpass the highest charge voltage specified by battery specification.
· Charge temperature: The battery should be charged within proper temperature range specified in specification.
· Discharge current: can't surpass the biggest discharge current specified by battery specification.
· Discharge temperature: The battery should be discharged within proper temperature range specified by specification.
The 1054 Pouch Coin Lipo Battery Mini Rechargeable Button Cell is optimized for products where compact size, low weight, and flexible installation are essential.
Application Benefits:
- Ultra-thin battery structure
- Lightweight integration
- Stable power output
- Space-saving design
Suitable for:
- Wireless earbuds
- Bluetooth earphones
- Mini audio accessories
The compact form factor helps manufacturers create smaller and more comfortable audio products.
Wearable products require batteries that can fit into limited internal spaces.
Applications include:
- Smart accessories
- Health monitoring devices
- Smart sensors
- Wearable electronics
Advantages:
- Low weight
- Flexible installation
- Reliable rechargeable performance
For IoT products requiring compact energy sources, the 1054 battery provides:
- Stable voltage supply
- Long standby support
- Small installation footprint
Suitable for:
- Wireless sensors
- Smart monitoring devices
- Mini IoT terminals
The battery can also support:
- Smart pens
- Small cameras
- Mini controllers
- Portable electronic accessories
Different electronic products require different battery configurations. Yideng provides adaptable battery solutions beyond standard models, allowing customers to customize connection methods, protection circuits, and packaging requirements.
Through OEM/ODM support and professional lithium battery manufacturing experience, Yideng helps brands develop reliable power solutions for emerging smart devices and compact electronics.
Yideng takes an active part in global trade expos annually. We've attended professional exhibitions across Hong Kong, India, Japan, the US and other regions. These on-site booth shots capture our face-to-face communications with worldwide buyers, showcasing our products and expanding cross-border cooperation.
