The Yideng 601230 Small Rechargeable Lithium Polymer Lipo Battery is developed specifically for compact smart devices that require lightweight design, stable performance, and efficient power utilization.

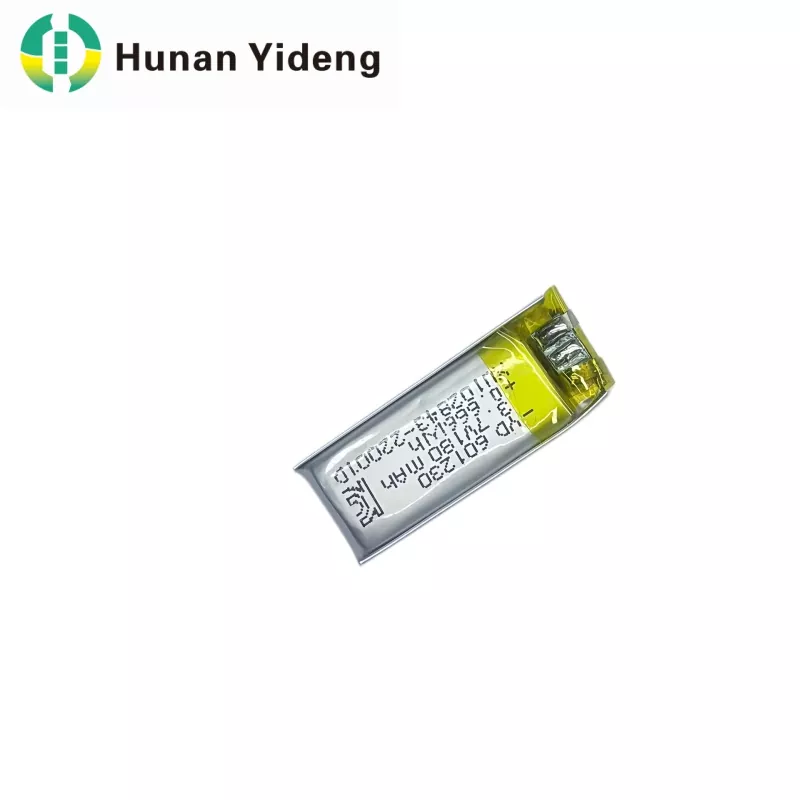

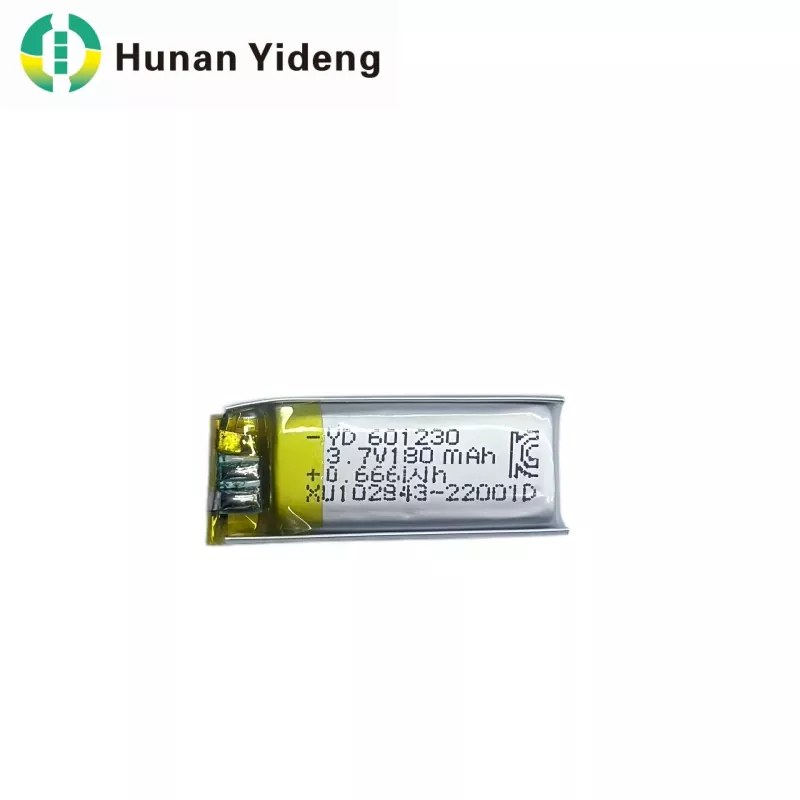

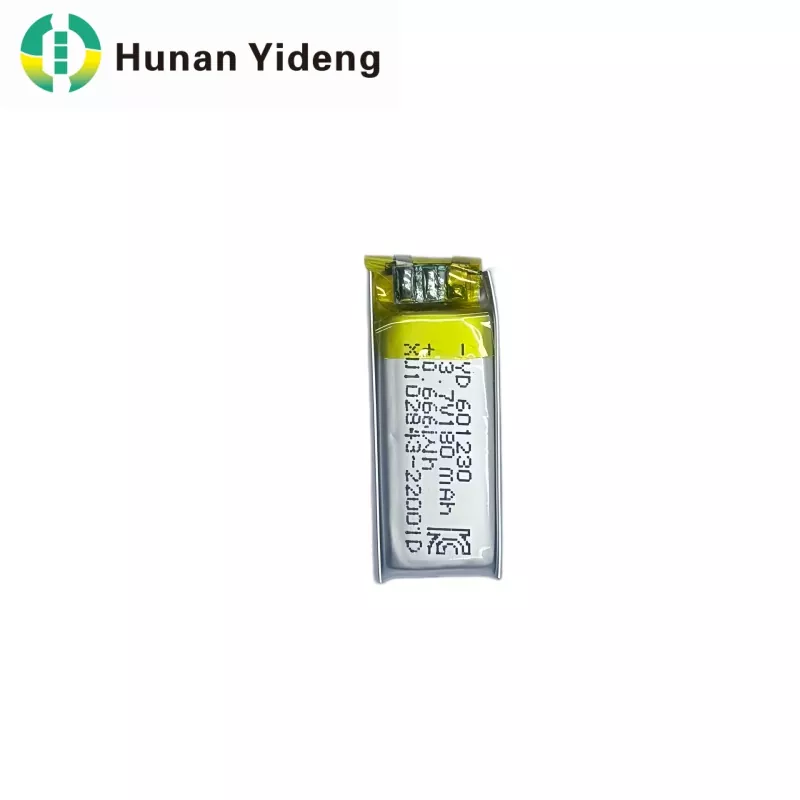

With a compact 6.0 × 12.0 × 30.0mm pouch cell structure, this rechargeable LiPo battery provides an ideal power solution for TWS earbuds, smart rings, wearable sensors, and mini electronic devices where internal space is limited.
Featuring a 180mAh capacity, the battery supports continuous device operation while maintaining a lightweight structure of only approximately 5g, helping manufacturers achieve thinner and more comfortable wearable products.
Yideng applies advanced lithium polymer battery technology to optimize energy density, discharge stability, and cycle performance. The 601230 battery also supports customized solutions including PCM protection, connector design, wire configuration, capacity adjustment, and branding requirements.
From prototype development to mass production, Yideng provides professional OEM/ODM battery manufacturing services for global wearable device companies.
| Item | Specification |
| Model | 601230 |
| Material | Li-ion Polymer Battery |
| Normal Capacity (0.2C) | 180mAh |
| Minimum Capacity (0.2C) | 180mAh |
| Energy | 0.666Wh |
| Normal Voltage | 3.7V |
| Delivery Voltage | 3.7V ~ 4.2V |
| Standard Charge Method | Charge at maximum current. When the battery or pack terminal voltage reaches the charging limit voltage, charge at constant voltage until the charging current is less than or equal to 0.02 C, then stop charging. |
| Discharge Program | The battery or the battery pack carries on the constant current discharge with the maximum discharge current to the discharge termination voltage. |
| Max Charging Current | 1C CC/CV → 0.02C cutoff |
| Max Discharging Current | 1C CC/CV → 3.0V cutoff |
| Over-Discharging Current | 3.0V |
| Operation Temperature Range |
Charging: 0°C ~ 50°C Discharging: -20°C ~ 60°C |
| Allowable Maximum Surface Temperature |
Charging: Tmax ≤ 50°C Discharging: Tmax ≤ 60°C |
| Storage T/H Range (time) |
-20°C ~ 60°C (Less than 1 month) -20°C ~ 45°C (Less than 3 months) -20°C ~ 25°C (Less than 1 year) |
| Cycle Life |
≥ 300 times (Thickness expansion rate ≤ 10%) ≥ 500 times (Thickness expansion rate ≤ 12%) |
Nominal Voltage: 3.7V
Delivery Voltage: 3.85V ~ 4.05V
Nominal Capacity: 180mAh
Battery Cell Measurement: 6.1 × 20.1 × 30.5mm
Wearable products require batteries that provide sufficient power without increasing device weight.
The 601230 Small Rechargeable Lithium Polymer Lipo Battery features:
- Approx. 5g lightweight structure
- Compact pouch cell design
- High energy utilization
Helping TWS earbuds and wearable devices achieve a lighter and more comfortable user experience.
For TWS earbuds and smart wearables, battery consistency directly affects user experience.
The battery provides:
- Stable 3.7V voltage output
- 180mAh energy capacity
- Reliable discharge performance
- Low self-discharge characteristics
Supporting extended playback time and standby operation.
The compact battery structure allows manufacturers to maximize internal device space.
Advantages include:
- Small footprint
- Efficient energy storage
- Flexible installation
- Suitable for miniaturized electronics
Ideal for next-generation wearable designs.
Yideng supports flexible OEM/ODM services:
- Custom battery dimensions
- Customized PCM protection
- Wire and connector selection
- Terminal design
- Label and packaging customization
Helping customers develop batteries according to their product requirements.
The 601230 rechargeable lithium polymer battery supports international safety requirements:
- CE
- UN38.3
- RoHS
With strict production control, Yideng ensures reliable battery performance for consumer electronics applications.
The 601230 Small Rechargeable Lithium Polymer Lipo Battery is optimized for compact consumer electronics requiring lightweight, rechargeable, and stable power solutions.
Application Benefits:
- Lightweight battery design
- Stable playback performance
- Compact size for earbud integration
- Reliable charging and discharge cycles
Suitable for:
- Wireless earbuds
- Bluetooth earphones
- Charging case systems
Smart rings require extremely compact batteries with efficient energy utilization.
The 601230 battery provides:
- Small installation size
- Lightweight structure
- Stable long-term operation
Supporting:
- Health monitoring rings
- Smart wearable accessories
Applications:
- Fitness trackers
- Smart sensors
- IoT wearable devices
Advantages:
- Low self-discharge
- Reliable standby performance
- Flexible customization
Suitable for:
- Portable devices
- Smart accessories
- Mini electronic products
Hunan Yideng New Energy founded in 2016, Yideng expanded from Dongguan to Hunan, building multiple production bases and workshops. Daily cell output grew from 50K to 500K by late 2019. The Guangdong and Hunan subsidiaries were established in 2020, with the Shenzhen international business department launched in December 2021.
A1: The 601230 lithium polymer battery is mainly designed for compact electronic devices such as TWS earbuds, smart rings, wearable sensors, Bluetooth devices, and mini consumer electronics. Its small size and lightweight design make it suitable for applications where space and weight are critical.
A2: The 601230 LiPo battery is designed to meet the requirements of TWS earbud applications, offering:
- Compact 6×12×30mm structure
- Lightweight design
- Stable voltage output
- Low self-discharge performance
- Reliable cycle life
These features help improve playback time and overall device reliability.
A3: Yideng applies a complete quality control system including:
- Raw material inspection
- Battery cell performance testing
- Capacity testing
- Voltage and internal resistance testing
- Safety verification
- MES production traceability
Each production batch is inspected to ensure stable quality and consistent performance.
A4: Yideng is a professional lithium battery manufacturer with:
- Over 8 years of battery manufacturing experience
- 2 intelligent production bases
- 150+ R&D professionals
- 68 battery-related patents
- OEM/ODM customization capability
We provide reliable battery solutions for global TWS, wearable, and consumer electronics brands.
A5: Yes we can supply the manual samples. If we have this model in stock, the delivery time is 3 – 5 days. If we don't have this model in stock, the delivery time will be 15 – 20 days.
A6: If we have this model in stock, the delivery time is 10 – 15 days. If we don't have this model in stock, the delivery time will be 25 – 35 days.
A7: Sure! Please provide us your requirement details.
A8: Each cell undergoes K-value, aging, short-circuit and drop safety tests.
