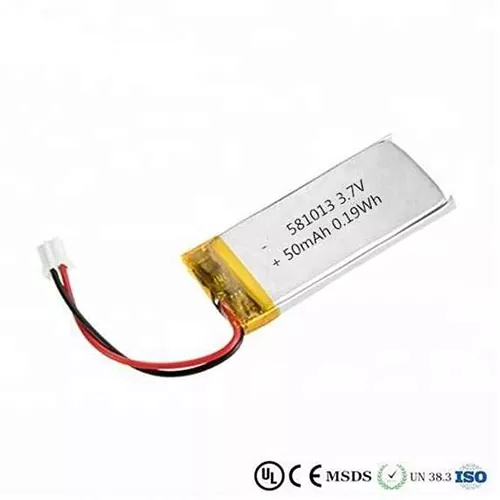

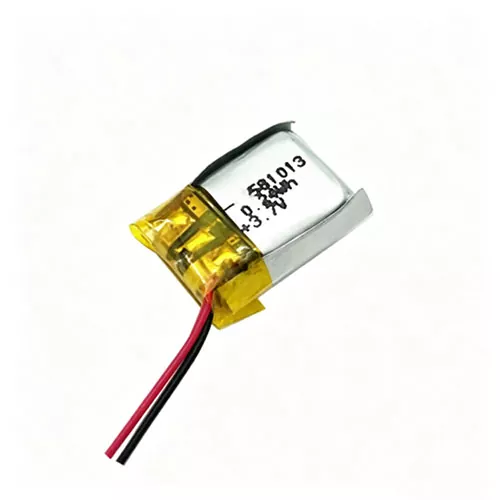

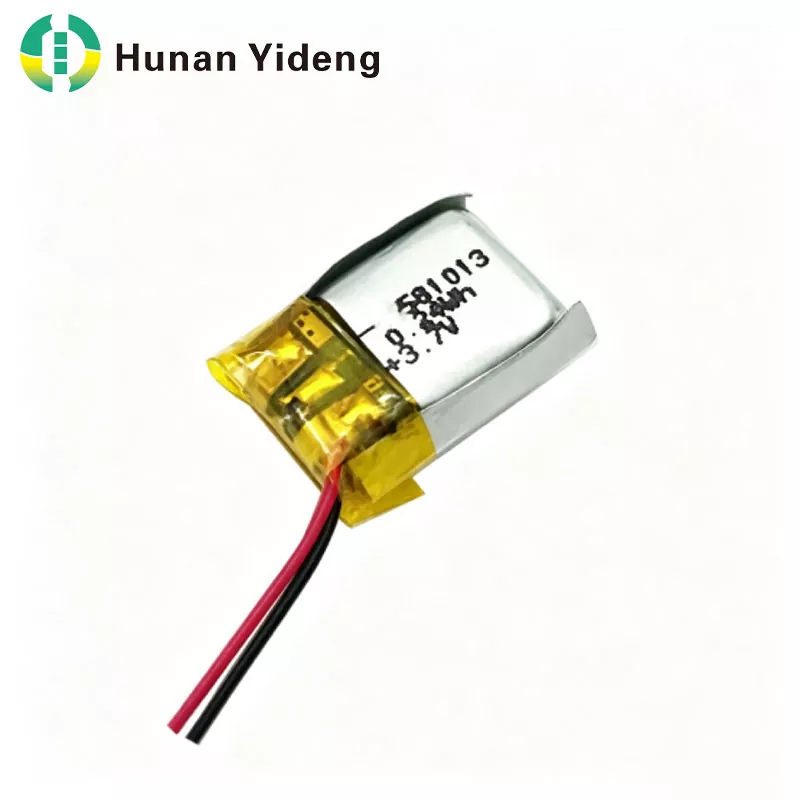

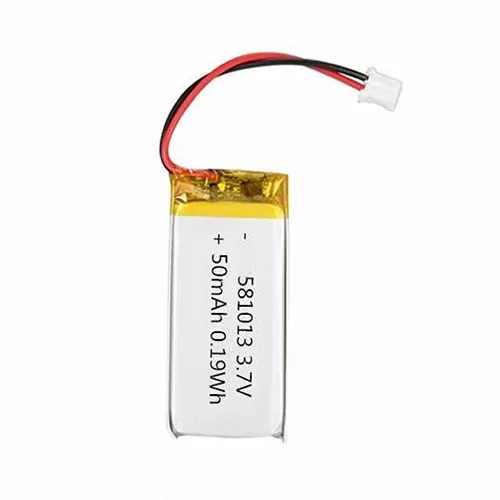

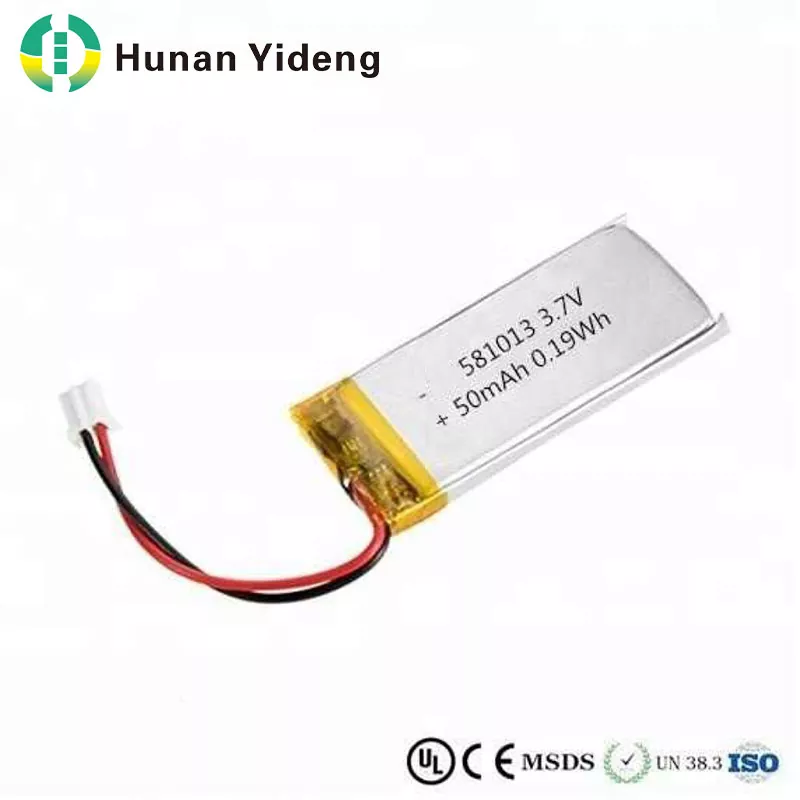

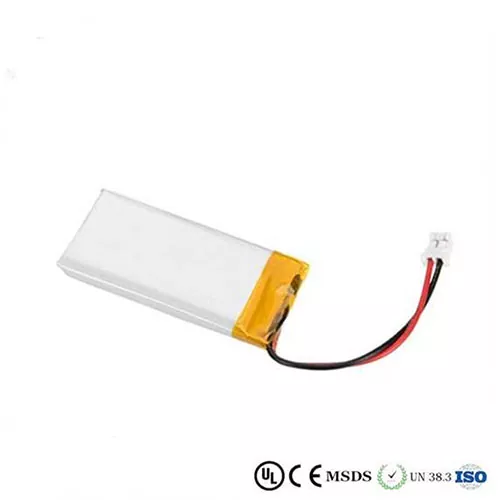

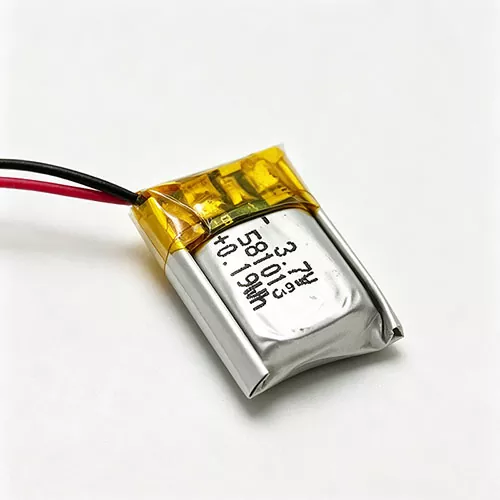

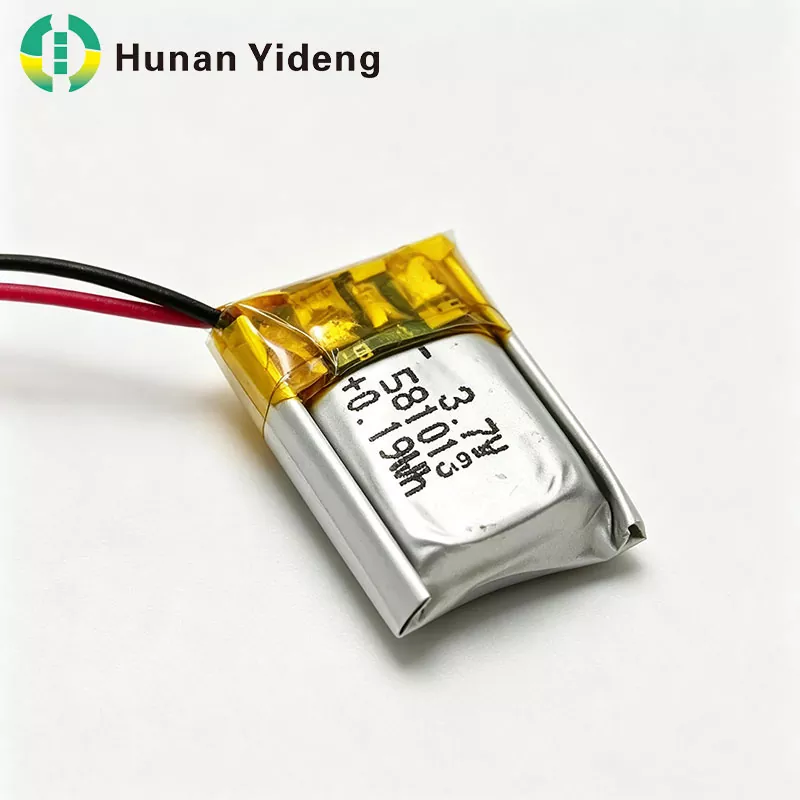

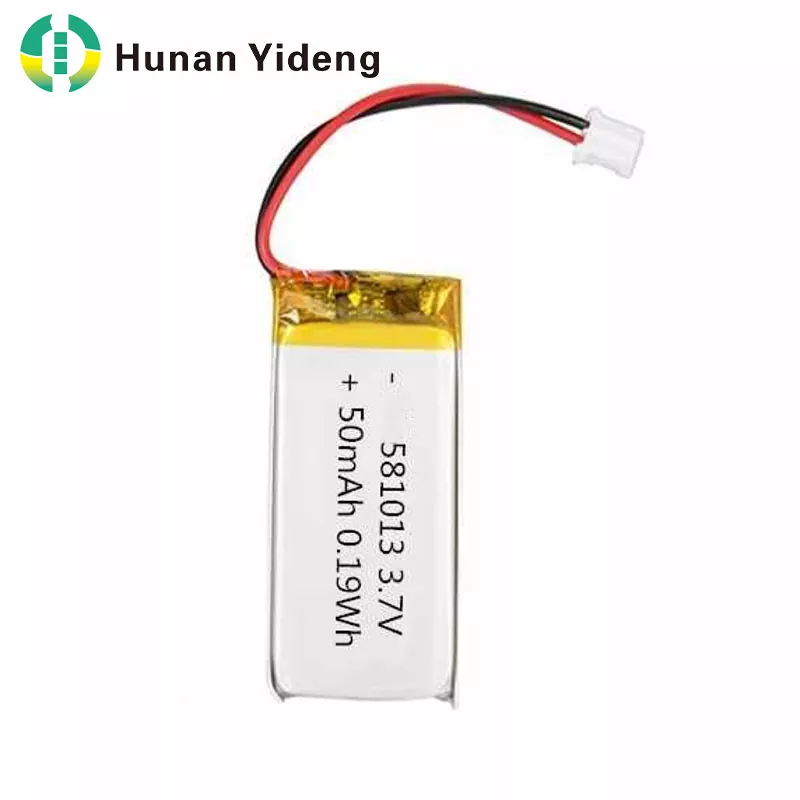

The 581013 3.7v 50mah Lithium Polymer Li ion Lipo Battery is developed for manufacturers who need reliable power solutions inside extremely compact devices.
Unlike conventional battery formats that require more installation space, this miniature pouch cell features a lightweight and flexible structure, allowing engineers to integrate rechargeable power into products with strict size limitations. Its compact dimensions make it especially suitable for applications where battery volume and weight directly affect the final product design.
With a nominal voltage of 3.7V, the battery provides consistent energy output for low-power electronic equipment. The optimized lithium polymer structure helps maintain stable charging and discharging performance, while low self-discharge characteristics support longer standby periods.
Yideng manufactures miniature LiPo batteries with controlled production processes and supports application-based customization, including PCM protection integration, wire assembly and connector matching. This allows customers to move from initial product development to commercial production with a battery configuration suitable for their device requirements.
| Item | Specification |
| Model | 581013 |
| Material | Li-ion Polymer Battery |
| Normal Capacity (0.2C) | 50mAh |
| Minimum Capacity (0.2C) | 50mAh |
| Energy | 0.185Wh |
| Normal Voltage | 3.7V |
| Delivery Voltage | 3.85V ~ 4.05V |
| Standard Charge Method | Charge at maximum current. When the battery or pack terminal voltage reaches the charging limit voltage, charge at constant voltage until the charging current is less than or equal to 0.02 C, then stop charging. |
| Discharge Program | The battery or the battery pack carries on the constant current discharge with the maximum discharge current to the discharge termination voltage. |
| Max Charging Current | 1C CC/CV → 0.02C cutoff |
| Max Discharging Current | 1C CC/CV → 3.0V cutoff |
| Over-Discharging Current | 3.0V |
| Operation Temperature Range |
Charging: 0°C ~ 50°C Discharging: -20°C ~ 60°C |
| Allowable Maximum Surface Temperature |
Charging: Tmax ≤ 50°C Discharging: Tmax ≤ 60°C |
| Storage T/H Range (time) |
-20°C ~ 60°C (Less than 1 month) -20°C ~ 45°C (Less than 3 months) -20°C ~ 25°C (Less than 1 year) |
| Cycle Life |
≥ 300 times (Thickness expansion rate ≤ 10%) ≥ 500 times (Thickness expansion rate ≤ 12%) |
The biggest challenge for many micro electronic products is limited internal space. The 581013 battery solves this problem with an extremely small pouch structure, allowing manufacturers to place rechargeable power sources inside compact product housings.
It is suitable for devices where traditional batteries are too large or too heavy.
With a weight of approximately 2g, this LiPo battery minimizes additional product weight while maintaining rechargeable performance.
This advantage is especially valuable for wearable and handheld products where user comfort and portability are important.
The 581013 3.7v 50mah Lithium Polymer Li ion Lipo Battery provides consistent 3.7V output with reliable charging and discharging characteristics, helping small electronic devices maintain stable operation during daily use.
Low self-discharge performance also reduces power loss during storage, making products easier to maintain before use.
Different miniature products often require different battery connection methods. Yideng supports customization options including:
- PCM protection board
- Wire length adjustment
- Connector selection
- Terminal configuration
This reduces additional battery modification work for electronic manufacturers.
Small batteries require precise manufacturing control because even minor differences can affect product performance.
Yideng evaluates each production batch through:
- Capacity testing
- Voltage inspection
- Internal consistency checking
- Charging and discharging verification
to ensure reliable performance for repeated production orders.

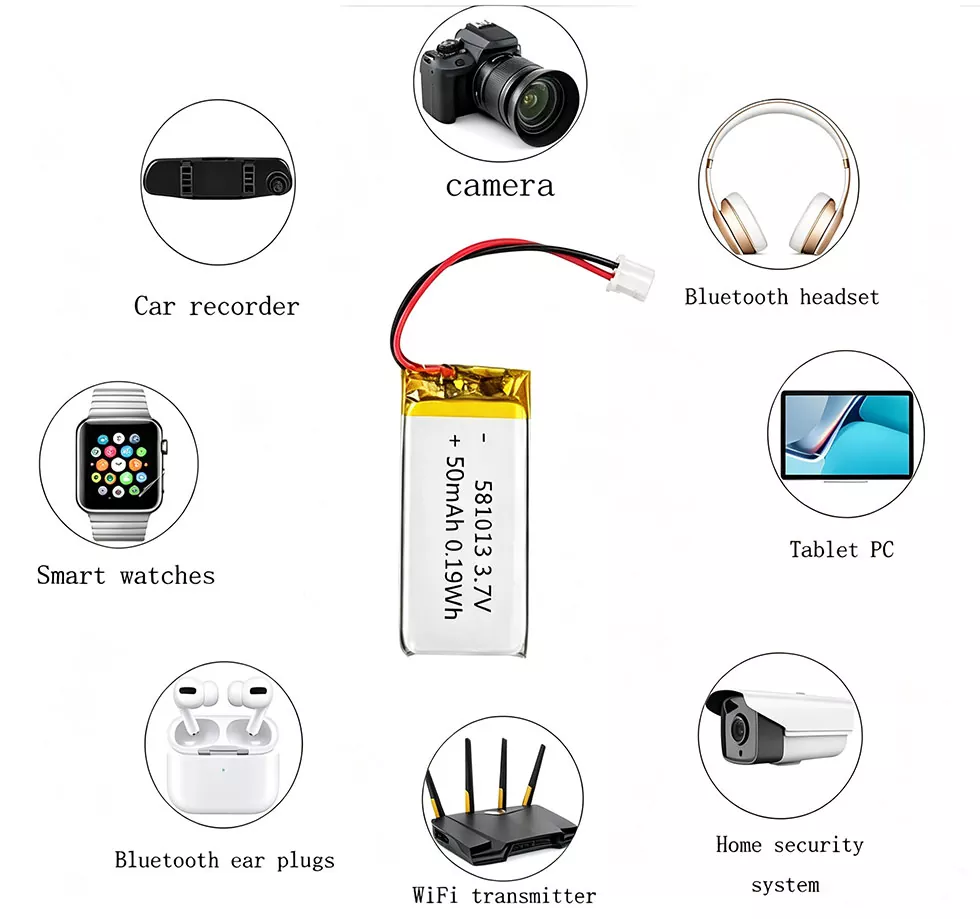

The 581013 3.7v 50mah Lithium Polymer Li ion Lipo Battery is designed for industries where compact size, lightweight construction and reliable rechargeable power are critical.
Wearable products continue becoming smaller and lighter, but they still require dependable power.
This miniature LiPo battery helps manufacturers integrate rechargeable energy into:
- Smart pens
- Smart rings
- Wearable sensors
- Compact health devices
Its small footprint allows designers to reduce product thickness while maintaining practical battery performance.
Portable medical devices require batteries that are small, reliable and easy to integrate.
The 581013 battery can support applications such as:
- Hearing assistance devices
- Mini monitoring equipment
- Portable health sensors
The lightweight structure helps improve user comfort for wearable healthcare products.
Many IoT devices operate with low power consumption but require long standby periods.
This battery is suitable for:
- Environmental sensors
- Wireless monitoring modules
- Smart control devices
Low self-discharge characteristics help reduce maintenance frequency for deployed equipment.
For compact consumer products where battery space is limited, this LiPo cell offers a practical rechargeable solution.
Applications include:
- Mini LED products
- Bluetooth accessories
- Portable electronic gadgets
Hunan Yideng New Energy boasts a strong R&D team composed of experienced doctors and professors with decades of lithium battery research experience. Focused on new energy materials and battery technology, the team has undertaken numerous scientific projects and secured multiple invention patents to drive continuous technical innovation and industrial advancement.
For international shipments, delivery times vary widely. DHL delivers most goods within 3 – 5 working days with fast air freight. UPS offers two options: expedited 4-6 days and economical 7-12 days. As a tax-inclusive delivery mode, DDP covers all tariffs and customs fees paid by sellers beforehand. It saves receivers from tedious customs clearance procedures yet brings higher overall shipping costs.
